which chips fail the most on the 64

Disk drives, Monitors, SuperCPU etc.
User avatar
Gyro Gearloose
Member
Member
Posts: 308
Joined: Sun Nov 15, 2015 5:20 am
Contact:

which chips fail the most on the 64

Post by Gyro Gearloose »

I mean we all know the PLA fails whether we take care of it or not.
I think in general what fails next are the DRAM chips, with maybe MOS support chips like 8701 type of things?

Has anyone complied actual numbers about what chips fail in a 64?

I mean as hot as it runs I don't think I've ever had a VIC-ii fail, but that's just me.

SIDs can fail especially when something is plugged into its "audio in".


The price one pays for pursuing any profession, or calling, is an intimate knowledge of its ugly side.

banman
Member
Member
Posts: 98
Joined: Sat Jun 15, 2019 12:21 am
Contact:

Re: which chips fail the most on the 64

Post by banman »

Hi Gyro Gearloose,


Here's some pics of dead chips I've collected from repairing 6 X C64's.

Apologies in advance for the poor photo quality..

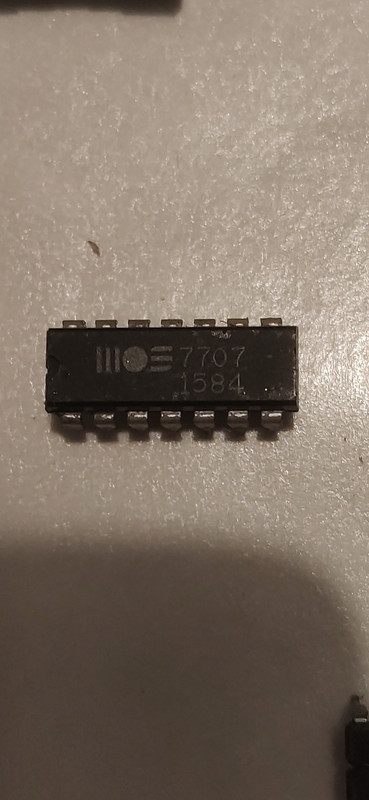

memory chip

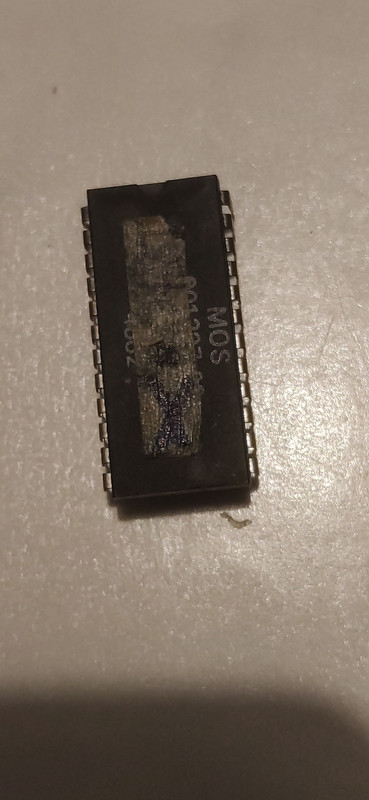

memory chip

U8 ? Alternatives 7406 or 74LS06

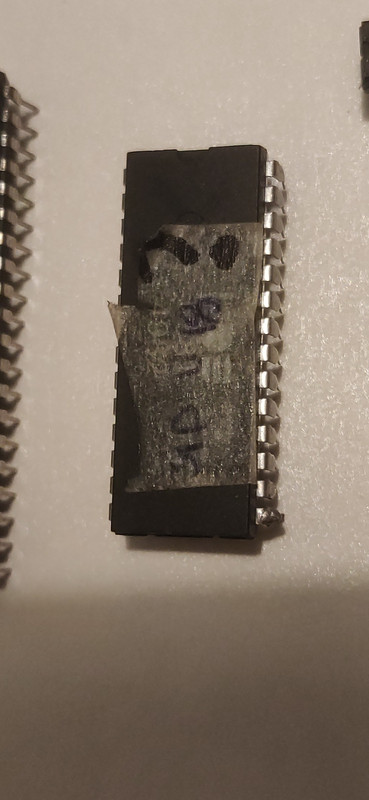

U4 Kernal ROM

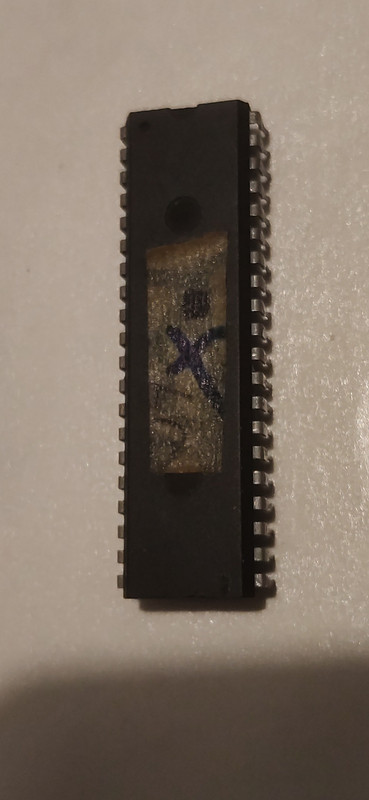

U7 MOS 6510 CPU

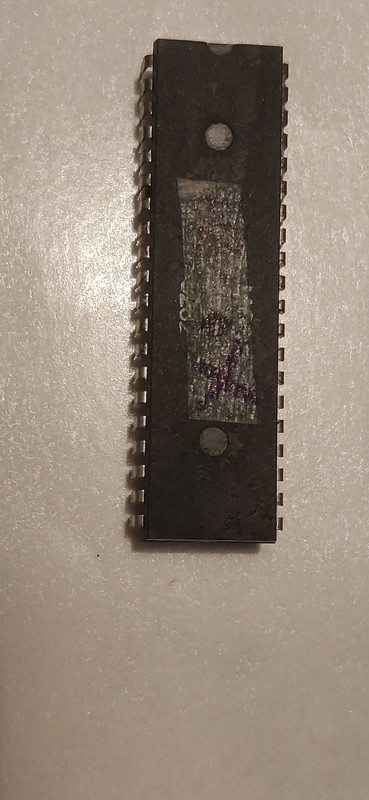

U18 SID Sound chip

U2 CIA chip

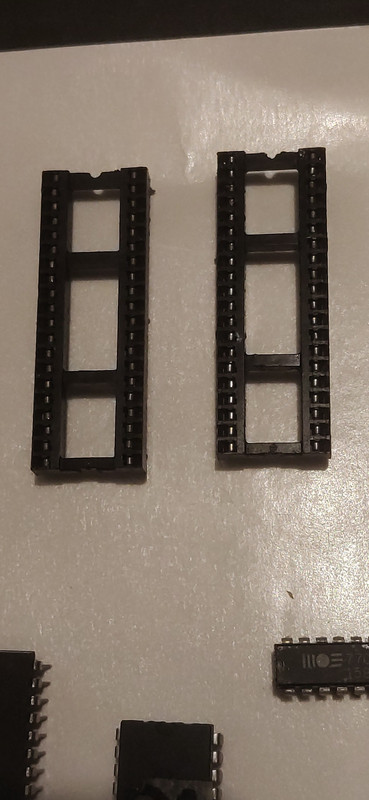

VIC II sockets

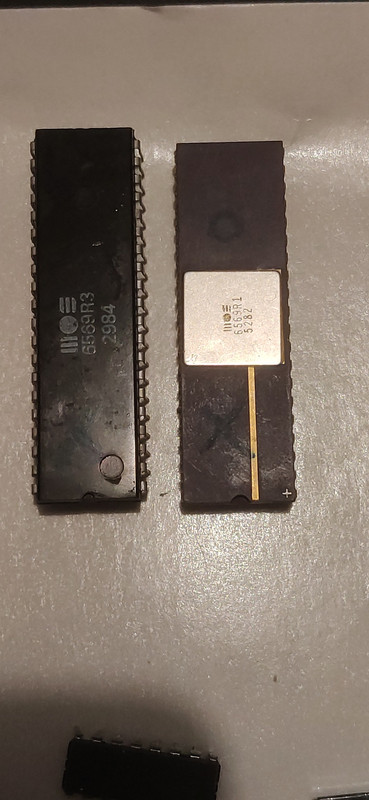

2X VIC II chips
